Rectifier Diode Modules

Rectifier Diode Modules

Rectifier Diode Modules cover modular diode configurations for AC/DC conversion, industrial power supplies, and rectifier systems. The category supports selection by reverse voltage, forward current, surge capability, package, and cooling method.

What Are Rectifier Diode Modules?

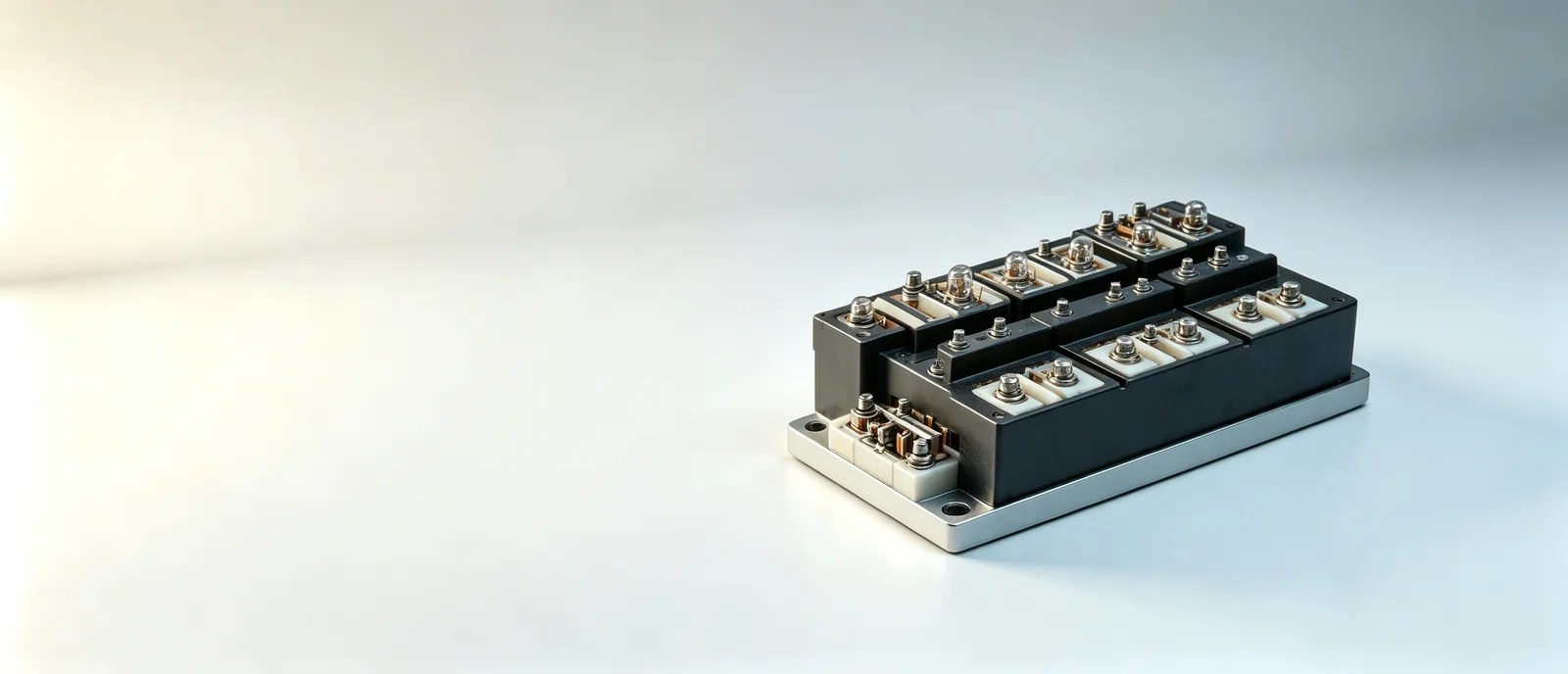

Rectifier diode modules package one or more power diodes for converting alternating current into direct current in modular industrial assemblies.

The diode elements conduct in the forward direction and block reverse voltage, while the package and cooling arrangement support integration into rectifiers, converters, and power supplies.

Key Features and Capabilities

• Single diode, dual diode, and bridge rectifier configurations
• Reverse voltage ratings from 400V to 6500V
• Average forward current from 10A to 3000A
• Heat-sink, air, and water cooling methods

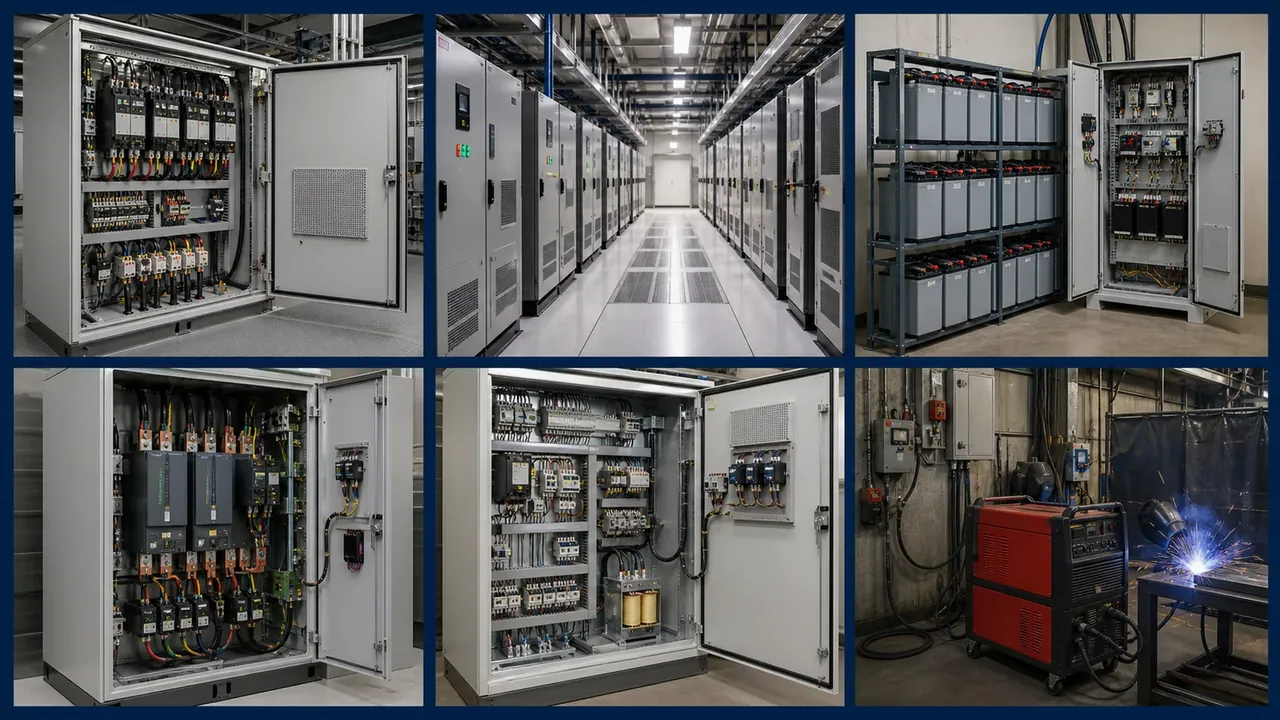

Typical Applications

• Industrial rectifiers, where the semiconductor stage converts incoming power for a DC load
• AC/DC conversion, where diode conduction converts an AC input into a DC output
• Power supply applications, where diode modules provide the rectifying stage of the supply
• Battery chargers, where rectified DC output supports an industrial charging circuit
• Motor drive DC links, where rectification supplies the drive's intermediate DC stage
• Welding power supplies, where controlled conversion supplies the welding power stage

Typical Specifications

The following values describe typical category-level references. Confirm the available rating combination and operating limits in the model-specific datasheet.

How to Select Rectifier Diode Modules

1. Confirm the circuit function and configuration required from Rectifier Diode Modules before comparing individual models.
2. Compare Product Type, Reverse Voltage (VRRM), Average Forward Current (IF(AV)) with the operating conditions and design margin required by the target equipment.
3. Review Surge Forward Current (IFSM), Junction Temperature (Tj), Cooling Method together rather than treating any one category value as a complete model specification.
4. Verify mounting, cooling, control, and protection requirements in the selected model or system documentation.

Frequently Asked Questions

1. Which specifications are typically compared for Rectifier Diode Modules?

The supplied category data includes Product Type: Single Diode / Dual Diode / Bridge Rectifier; Reverse Voltage (VRRM): 400V - 6500V; Average Forward Current (IF(AV)): 10A - 3000A. These are category-level references, so the available combination must be confirmed for the selected model or system.

2. Where are Rectifier Diode Modules typically used?

Typical project contexts include Industrial rectifiers, AC/DC conversion, Power supply applications, Battery chargers, Motor drive DC links, Welding power supplies. The electrical configuration and operating conditions still need to be matched to the specific project.

3. How should engineers select Rectifier Diode Modules?

Start with the required circuit function, then compare electrical ratings, configuration, mounting, cooling, control, and protection conditions against the model-specific documentation.

4. How should cooling and mounting be checked for Rectifier Diode Modules?

Use the selected model or system documentation to verify the required heat sink or cooling method, mounting arrangement, interface conditions, and installation limits before finalizing the design.

5. What information is needed to request a Rectifier Diode Modules recommendation?

Provide the required circuit function, input and output conditions, load profile, duty cycle, available cooling, mounting constraints, and any control, protection, or communication requirements.

Specifications shown are typical category-level references. Confirm model-specific ratings and operating conditions before selection.
